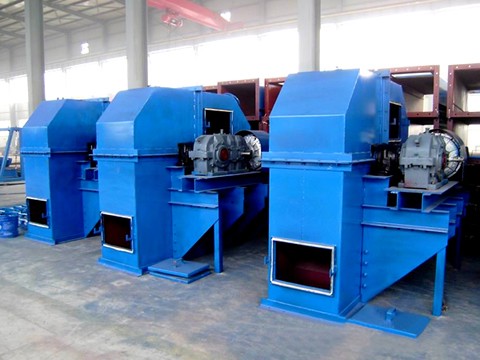

Bucket Conveyer

Bucket Conveyer

Lifting height: 28-32.7m

Processing capacity: 3-60m³/h

Processible materials: bulk and particle materials like cement, stones, sand, ore, limestone, coal, gypsum, clinker, dry clay; powder materials such as raw materials, cement and coal powder etc.

Application range: mining, construction materials, coal mining and sand quarry.

Get a Quotation Leave Message
You can also contact with us by:

Overview

A bucket conveyor is a mechanical devices used to transport products from one stage to another. Bucket elevators are used in a wide variety of settings, including commercial agriculture and mining, and several specialty companies produce bucket elevators and accessories. These devices are used primarily when materials need to be handled in a large scale, and they are capable of moving huge volumes of bulk material every hour.

Bucket elevators for the mechanical, vertical transportation of materials have become a crucial link in the production process in many industrial sectors. Material is fed into an inlet hopper. Buckets (or cups) dig into the material, and convey it up to and over the head sprocket/pulley, then throwing the material out the discharge throat. The emptied buckets then continue back down to the boot to continue the cycle.

Continuous bucket elevators have buckets spaced continuously and operate at slower speeds. The continuous bucket placement allows the force of gravity to discharge their load onto the inverted front of the preceding bucket. The bucket then guides that material into the discharge throat on the descending side of the elevator. They minimize product damage or are used to handle light, fluffy materials where aeration of the product must be avoided. The motion of belt or chain is un-directional. Bucket elevator is a very simple yet reliable device for lifting of bulk materials. Bucket elevators enjoy a few advantages, which include simplicity of design and fabrication, requires minimum floor space, low initial investment.

Technical Data

Technical parameters of ring chainbucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Pitch of buckets
(mm)

Motor prower

(kw)

TH160 25 7-12 15-20 400 3-4
TH200 28 8-15 20-30 500 3-5.5
TH250 30 10-25 25-35 500 4-7.5
TH300 30 25-35 30-40 500 5.5-11
TH315 40 30-40 35-45 512 5.5-15
TH400 40 45-60 40-55 512 11-22
TH500 40 65-80 50-60 512 15-30
TH630 40 100-120 60-65 688 18.5-37
TH800 40 130-150 65-75 920 22-45

Technical parameters of wire belt bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)

Bucket Volume

(L)

Motor prower

(kw)

TDG160 80 34 0-20 2.6 2.2-11
TDG200 80 45 0-25 4.1 3-15
TDG250 80 71 0-30 6.5 5.5-22
TDG315 80 101 0-35 10 7.5-30
TDG400 80 158 0-40 16 15-45
TDG500 80 218 0-45 25 18.5-55
TDG630 80 345 0-50 40 30-90
TDG800 80 491 0-50 61 45-132

Plate chain bucket elevator

Specification

Max.lifting height

(m)

Max.lifting capacity

(m³/h)

 Percentageallowed

(%)

Pitch

(mm)

Motor power

(kw)

10 25 50 75 100
Max.size(mm)
NE15 40 16 65 50 40 30 25 101.66 1.5-4
NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
NE50 62 60 90 75 58 47 40 152.4 3-15
NE100 58 110 130 105 80 65 55 200 7.5-30
NE150 65 170 130 105 80 65 55 200 11-37
NE200 73 220 170 135 100 85 70 250 18.5-75
NE300 61 320 170 135 100 85 70 250 22-75
NE400 47 420 205 165 125 105 90 300 45-90
NE500 58 500 240 190 145 120 100 300 45-132
