Jaw Crusher

Jaw Crusher

Feed size: 120-1,500mm

Processing capacity: 1-2,200t/h

Processible materials: Limestone, granite, pebbles, cobble, iron ore, basalt and all kinds of hard and soft ores with compressive strength not higher than 320 Mpa

Application range: Quarry, coal mining, mines mining, desulfurization in power plant, quartz sand, concrete mixing station, etc.

Get a Quotation Leave Message
You can also contact with us by:

Overview

Product Introduction to Jaw Crusher

This series of jaw crusher belongs to stone crushing equipment which is widely used in the works of metallurgy, mining, cement, chemistry, refractory and ceramics as well as highway construction and water conservancy.

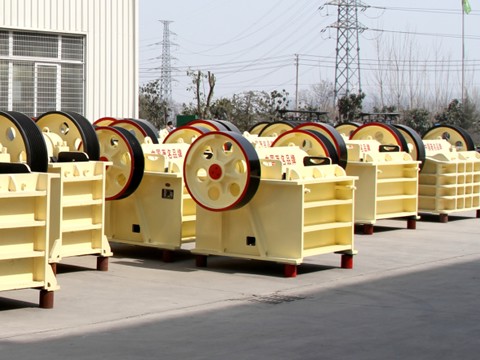

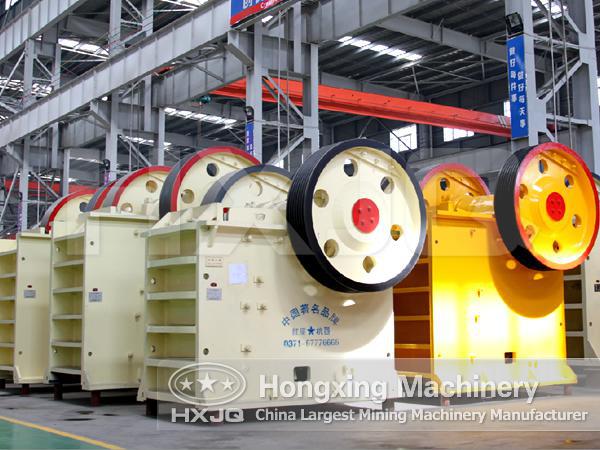

jaw crusher

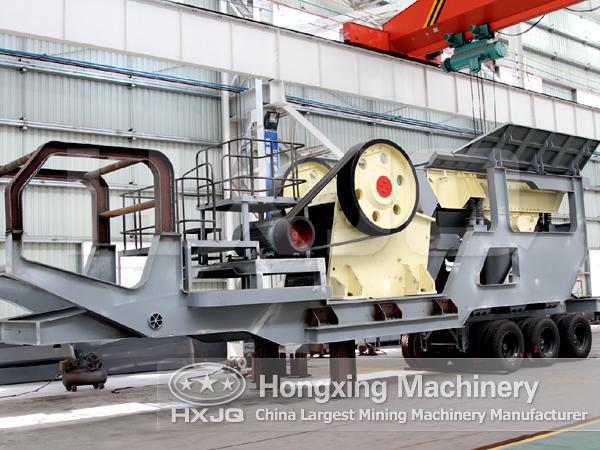

Product Characteristics of Mobile Jaw Crusher

The series of jaw crusher had the advantages of big crushing ratio, equal product granularity, simple structure, reliable working condition, convenient repair and economical operation. And compression strength of the materials to be crushed is less than 320 MPA. This structure of this pe jaw crusher is simple. And the eccentric axis and other elements bear the smaller force.

1.The crushing cavity is deep, thus improving the material going-through ability and the production capacity;

2. The product granularity is uniform;

3. The range of the gasket discharge is wide, thus increasing the flexibility of the equipment and can satisfy the specific need of the customers;

4. The lubrication system is safe and reliable.

5. The cost is low; the structure is simple.

Technical Data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 8P   350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
