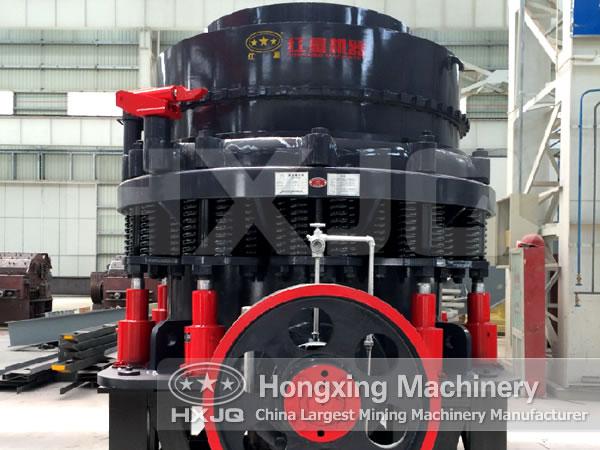

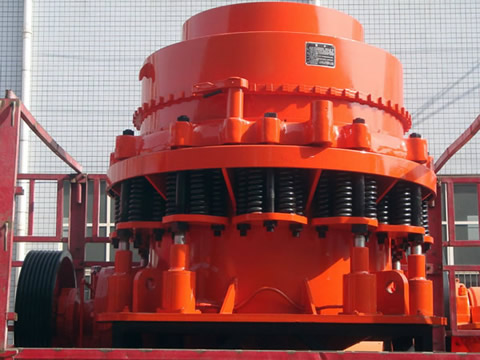

Cone Crusher

Cone Crusher

Feeding size: 65-300mm

Processing capacity: 12-1,000t/h

Processible materials: granite, basalt, quartz stone, iron ore, pebbles, green stone, copper ore and limestone.

Application range: metallurgy, construction, road construction, chemical engineering, phosphate industry and mining.

Advantages: reasonable price, high reduction ratio and long service life of the wear parts.

Get a Quotation Leave Message
You can also contact with us by:

Overview

Hongxing cone crusher is used for crushing ores and rocks and the advantages are reliable structure, high efficiency, easy adjustment and economy. HPC series cone crusher with high-efficiency and hydraulic pressure is widely used in mining, cement factory, sand and stone industry. It is used for secondary and fine crushing of all kinds of rocks, whose pressure strength resistance is under 350Mpa, such as iron ores, nonferrous metal ores, basalt, granite, limestone, sandstone, cobble, etc.

When some foreign matters that cannot be crushed go into the crushing chamber or the machine is overloaded due to some reasons, the spring protection system of cone crusher will increase the discharging mouth and the foreign matters will be discharged from the crushing chamber, thus realizing protection. If the foreign matters are stuck at the discharging mouth, the spring protection system will start the chamber cleaning system and continue to increase the discharging mouth, so that the foreign matters can be discharged from the crushing chamber of cone crusher. Under the function of the spring, the discharging mouth will be automatically reset and cone crusher will resume normal work. This series of cone crusher is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher and the customers can choose different type according specific needs.

Working Principle of Cone Crusher

When the cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheels. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and sometimes far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

Technical Data

Specification Model Diameter
of large
end of
crushing
 cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Φ600 PYB600 600 65 12-25 40 8P   30 5
PYD600 35 3-13 12-23 5.5
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2
PYZ900 60 5-20 20-65 11.2
PYD900 50 3-13 15-50 11.3
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7
PYZ1200 100 8-25 42-135 25
PYD1200 50 3-15 18-105 25.3
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3
PYZ1750 185 10-30 80-210 50.3
PYD1750 85 5-13 60-180 50.2
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80
PYZ2200 230 10-30 130-410 80
PYD2200 100 5-15 80-200 81.4
