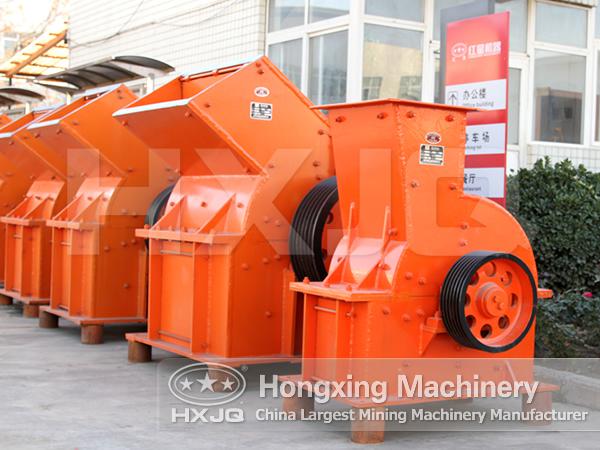

Hammer Crusher

Hammer Crusher

Feeding size: ≤200-≤350mm

Processing capacity: 5-150m³/h

Processible materials: limestone, furnace slag, coke, cola, salt, chalk, gypsum, alums, iron ore, non-ferrous metals, granite, quartz stone, sandstone, cobbles etc.

Application range: cement plant, metallurgy department, electric power department, construction material industry, mining and road construction industry.

Get a Quotation Leave Message
You can also contact with us by:

Overview

The hammer crusher, also named heavy hammer crusher, crushes by the collisions between high-speed hammer and materials. It has features of simple structure, high reduction ration, high efficiency, etc. As the main equipment in stone crusher plant, our large hammer crusher is ideally suitable for crushing all kinds of ores and any big-sized materials. For this kind of stone crusher, the highest anti-pressure strength of crushed material is 320 MPA.

The common hammer crusher machine includes single-rotor type and double-rotor type. According to the arrangement of the hammer on the rotary table, it can also be divided into single-row hammer breaker and multi-row hammer breaker, and the rotary direction of the rotor includes reversible type and irreversible type. In addition, there is still simple type small heavy hammer crusher.

The electromotor drives the rotor to rotate with high speed in the crushing chamber. The materials are fed into the machine from the upper feeding mouth and are crushed under the hitting, impacting, cutting and grinding of the hammer which is moving with high speed. On the bottom of the rotor, there is sieve plate and the crushed materials that is smaller than the screen size are discharged from the sieve plate, and the coarse particles bigger than the screen size are retained on the sieve plate to be hit and ground again by the hammer and finally be discharged from the machine from the sieve plate.

Technical Data

Model
Specification
Feeding
Size
(mm)
Discharging
Size
(mm)
Capacity
(m³/h)
Motor
power
(kw)
Total
weight(t)
Dimensions
(L×W×H)(mm)
PCΦ400×300 ≤200 ≤25 5-10 11 0.8 900×670×860
PCΦ600×400 ≤250 ≤30 10-22 22 2.26 1200×1050×1200
PCΦ800×600 ≤250 ≤35 18-40 55 4.8 1310×1180×1310
PCΦ1000×800 ≤350 ≤35 25-50 75 5.9 1600×1390×1575
PCΦ1000×1000 ≤350 ≤35 30-55 90 8 1800×1590×1775
PCΦ1200×1200 ≤350 ≤35 50-80 132-160 19.2 2060×1600×1890
PCΦ1400×1400 ≤350 ≤35 50-100 280 32 2365×1870×2220
PCΦ1600×1600 ≤350 ≤35 100-150 480 37.5 3050×2850×2800
