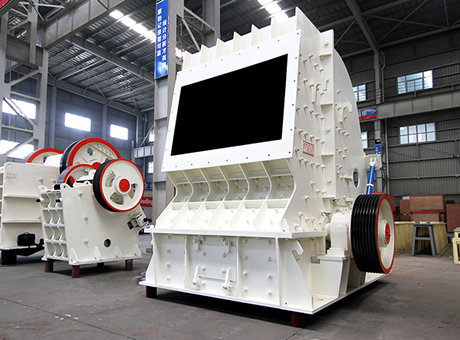

Impact Crusher

Impact Crusher

Feed size: 300-700mm

Processing capacity: 30-550t/h

Processible materials: soft and medium hard minerals: limestone, feldspar, calcite, barite, talc, rare earth, clay, kaolin, gypsum, graphite, etc.

Application range: to crush materials in a fine way in the following industries: construction materials, minerals, railway and highway, energy, transportation, cement, mining, chemical engineering, etc.

Get a Quotation Leave Message
You can also contact with us by:

Overview

Introduction to Impact Crusher

This series of impact crusher is a new type of high-efficiency crushing equipment which developed by absorbing domestic and foreign advanced technology and combining with mining conditions of domestic industry. The operator feeds chunks of material into the machine's hopper and it crushes them, turning the pieces into small chunks of a more uniform size. They can be run through another crusher to make them even smaller, or used as-is, depending on the setting. Numerous companies manufacture impact crushers, including large stationary models, as well as portable equipment for job sites.

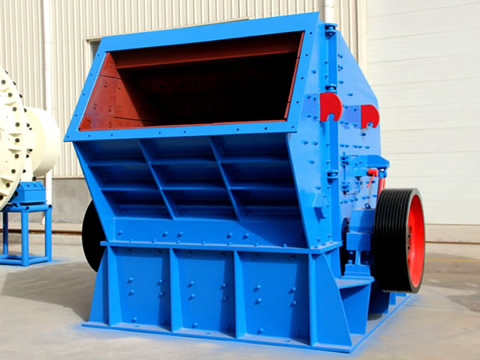

impact crusher

Features and Benefits of Impact Breaker

1. High reduction ratio and crushing efficiency;

2. No-board connection; the blow bar with high chrome (high chromed blow bar).

3. Impact plate with a special shape.

4. Crushed product with cubical shape.

5. Easy maintenance and reliable operation.

Operation Notes of Impact Crushing Machine

Like other heavy equipment, an impact crusher can be very dangerous. These machines operate at high speed and can break up very sturdy materials, making them potentially risky for people to work around. People usually need to wear eye and ear protection to prevent injuries, and must use caution around the equipment. The machine usually has an emergency stop for situations where people fall into the crusher, allowing personnel to quickly halt operations for a rescue or recovery operation.

Technical Data

Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Total
weight
(t)
Overall
dimension
(L×W×H)
(mm)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 6P   132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 6P   220 27 3180×2720×2620
PF-1320 Φ1300×2000 993×2000 500 165-320 6P   250 34 3220×3100×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 4P   315-400 50.6 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 800 600-800 6P   630-710 83.21 4400×3866×4009
