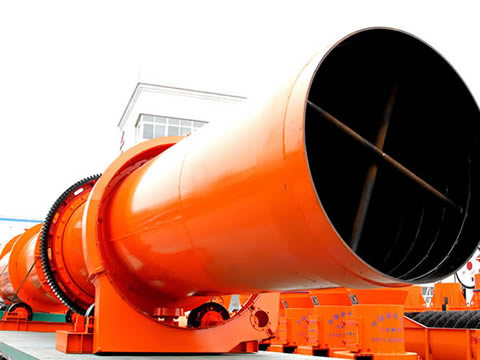

Dryer Machine

Dryer Machine

Product specification: Φ1.2×8.0m-Φ3.6×28m

Processing capacity: 1.9-76.0t/h

Processible materials: straw, distillers’ grains, organic compound fertilizer, sludge, aquatic product, wastes from food factory, scrap from the butchery, minerals, slag, coal, metal powder, clay, active clay, magnetic powder, graphite.

Application range: chemical engineering, mining, metallurgy, manufacturing and agriculture.

Get a Quotation Leave Message
You can also contact with us by:

Overview

The dryer machine has been mainly used for drying materials with some humidity and granularity in the fields, such as ore dressing, building materials, metallurgy, chemical industry, etc. The rotary dryer is highly adaptable to materials. Due to its easy and reliable operation, it is widely used.

According to its shape, it is also called drum dryer. China is one of the major countries to manufacture such dryer machines, and therefore, China dryer is the best-selling product in the world. In China, Henan Hongxing Mining Machinery Co., Ltd is the manufacturing base of mining machines, and our main mining products include China dryers, rotary dryers, and other mining machines.

The indirect heat transfer dryer manufactured by our company is mainly used in building materials, chemical industry, cement plant for drying limestone and slag, driving device, supporting device and sealing ring. The dryer has the advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation. Indirect dryers employ the similar principles of operation to direct dryers. However, the fundamental difference is that the method of heat transfer is predominant by conduction as opposed to convection. These units are sometimes referred to as contact dryers.

Technical Data

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
