Classifier

Water channel length: ≤3,000-14,300mm

Screw diameter: 300-3,000mm

Processible materials: natural sand, artificial sand, machine-made sand.

Application range: ore beneficiation industry, mine field, resource recovery .

Get a Quotation Leave Message
You can also contact with us by:

Overview

Spiral separators, which are also called spiral concentrators, are gravity devices that separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium.

Application of Spiral Separator

Hongxing spiral separators have extremely good performance and effects in processing mineral sand from beach, riverside, seashore and stream.Our spiral separator can be used for concentration of iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, tantalum, columbium and other non-ferrous metals, rare metals and non-metallic minerals.

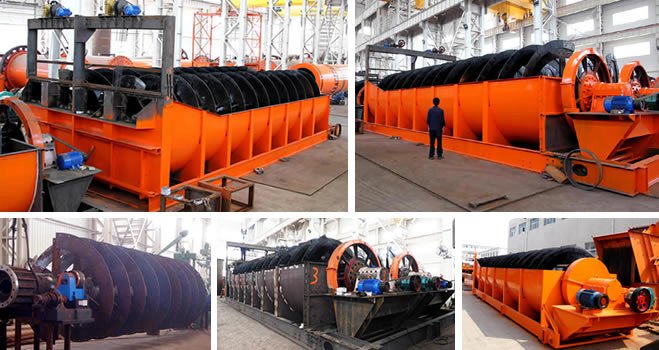

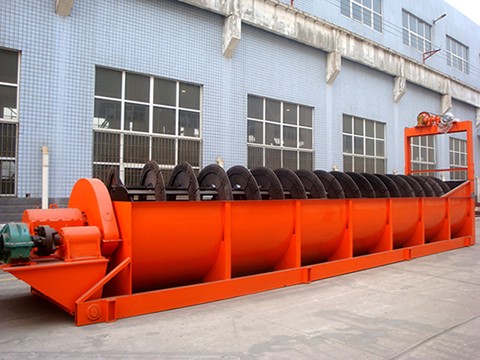

Screw classifier

Performance Features of Spiral Classifier

1. Adjustable weirs

2. Sealed, submerged bearing

3. Optional automatic lubrication system

4. Rigid tank and substructureWide choice of tank design

5. Overflow collection boxWide range of industries serviced

6. Single spiral range from 300 mm to 2 200 mm

7. Duplex spiral models 1 500 mm and 2 200 mm

Working Principle of Spiral Classifier

Spiral classifier is a type of classifying machine that classifies materials based the principle that the solid particles with different sizes and proportions have different falling speed in the liquid, and fine ore particles float in the water and coarse ore particles sink to the bottom of the chute and the coarse ore particles are pushed by the spiral to the upper part and discharged. This machine is able to filter the powdery particle crushed by the grinding mill and whirl the coarse particles with the spiral to the feeding mouth of the grinding mill and discharge the filtered fine particles. The pedestal of this machine is made of U-steel, and the rack is welded with steel plate. The water feeding head and spindle nose of the spiral shaft are made of cast iron with wear-resisting and durable property and the lifting device is divided into power-operated type and manual-operated type.

Technical Data

Model Spiral
Diameter
(mm)
Trough
Length
(mm)
Spiral
rotate
speed
(r/min)
Processing
capacity(t/d)
Motor
Power
(kw ≤)
Dimensions
(mm≤)
Total
weight
(t)
Sand
-return
Overflow For
driving
For
lifting
Length Width Height
FG-3 300 3000 12-30 80-150 20 1.1 ---- 3850 490 1140 0.7
FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480 1.9
FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820 3.1
FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380 4.9
FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680 6.2
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920 11.0
2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110 15.8
2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920 17.6
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080 22.1
2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890 30.7
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490 20.5
FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340 28.5
2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490 35.5
2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640 48.7
FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970 26.8
FC-24 14130 6800 490 18.5 4 16580 2930 7190 41.0
2FG-24 9130 13600 1160 30 6 12710 5430 5690 45.8
2FC-24 14130 13700 910 37 8 17710 5430 8000 67.9
2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350 73.0
2FC-30 14300 23300 1410 ---- ---- 17091 ---- 8680 84.8
