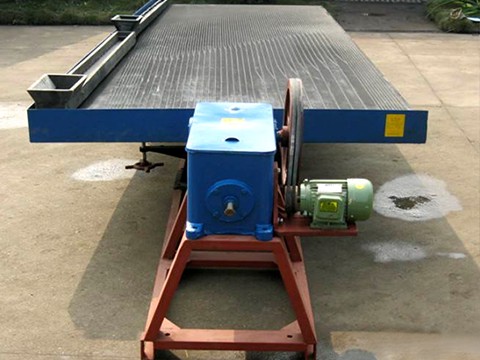

Shaking Table

Feeding size: 0.15-2mm

Processing capacity: 10-60t/d

Processible materials: to separate materials including tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanic iron and coal.

Application range: industrial fields like ore beneficiation plant.

Advantages: to get concentrate and tailings at one time; no use of agent; low power consumption; high water consumption.

Get a Quotation Leave Message
You can also contact with us by:

Overview

In the metallurgical industry, shaker table is mineral processing equipment used for sorting fine material. Traditional single-layer shaker table covers large area and has low capacity. The launch of double-layer shaker table solves available problems in the use of single-layer shaker table. Double-layer shaker table has the features of small footprint, large capacity and relatively low cost, energy saving, high separation efficiency, easy to adjust, etc.

Installation and Commissioning of Shaker Table

1. Before installation, you should make product quality test: check before installation, bed parts shall be complied with the drawings, and other parts should be intacted.

2. Lifting bed should be set with good connectors and four connection blocks, and adjust the height and the exact location, and the installation center of the bed should be consisted with connector center.

3. The hammock should prevent the compressional deformation of side plate and non-collision bed.

4. After the installation of the bed, each connected screw hole should be aligned, and the gap between the support joints should be not too large to prevent the generation of sound and wear.

5. After checking the installation of the connection, check that if the bed is functioning smoothly, and the connection part is loose, shake or the sliding lubrication is good and no abnormal noise.

6. The empty running is completed without problems, the equipment can work normally.

Features of Shaking Table

1. The movement of high-quality cast iron and NSK bearings mechanical are more durable.

2. The unique motor is overheating, the temperature out of control will lead to automatic power-off to protect device.

3. The whole quiet design.

4. Convenient design, so that the oscillation amplitude adjustment is easy to complete.

5. Intelligent sound and light alarm environmental scans micro-processing controller.

6. Encryption lock operating parameters can avoid human errors.

7. The run parameter memory function can avoid cumbersome operation.

Technical Data

Name Grit
concentrator
 table
Fine sand
concentrator
 table
Sludge
concentrator
 table
Bed surface
Dimensions
Length
(mm)
4450 4450 4450
Driving
part Width
(mm)
1855 1855 1855
Concentrate
part Width
(mm)
1546 1546 1546
Max.feeding
size(mm)
2 0.5 0.15
Feeding
amount
(t/d)
30-60 10-20 15-25
Feeding
thickness
(%)
25-30 20-25 15-25
Stroke
(mm)
16-22 11-16 8-16
Frequency
(f)
45-48 48-53 50-57
Bed surface
Water quantity
(t/d)
80-150 30-60 10-17
Bed surface
Horizontal
obliquity(°)
2.5-4.5 1.5-3.5 1-2
Bed surface
Portrait
obliquity(%)
1.4 0.92 ----
Table board
corner(°)
32-42 40 42
Concentrating
area(㎡)
7.6 7.6 7.6
Bed surface
Length ratio
2.6 2.6 2.6
Shape of
side-bed
surface
Rectangle Zigzag Triangle
Motor
power(kw)
1.1 1.1 1.1
Transmission
device
Eccentricity Linkage
