Jaw Crusher

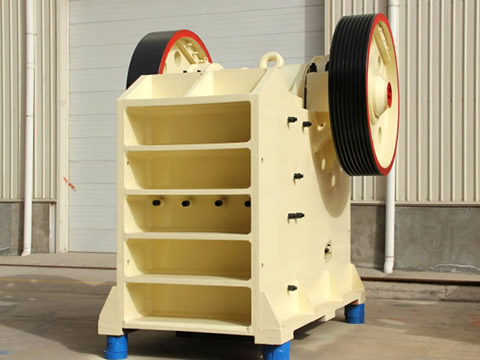

Aggregate Jaw Crusher

Feeding particle size:120-1500mm

Productivity:1-2200t/h

Application field:Primary crushing for aggregate.

Advantages:Aggregate has large demand in market and aggregate jaw breaker is indispensable equipment for primary crushing. And large jaw aggregate crusher can crush the material into medium particle size to make it more convenient to finish sand production and product best quality sand.

Get a Quotation Leave Message
You can also contact with us by:

Overview

Aggregate jaw crusher or aggregate jaw crushing machine is composed of movable jaw and fixed jaw which mimes the movement of jaw to complete crushing. Jaw crusher is widely used in mining smelting, building material, highway, railway, water conservancy and chemical industry and other industries.

Advantages:

Aggregate has large demand in market and aggregate jaw breaker is indispensable equipment for primary crushing. And large jaw aggregate crusher can crush the material into medium particle size to make it more convenient to finish sand production and product best quality sand.

Working Principle:

 Driven by the high speed high torque motor, the hammer hand on the rotor of the main machine strikes the material which will be crushed in the cavity. Through the space between the lining plate and the hammer head, the material can be crushed totally and efficiently in the cavity that it can be the qualified material. Then the crushed material passes through the air spiral choose system, separating metallic and non-metallic. In addition, there is dust collector in the whole equipment which can minimize the harm of dust pollution in the production process.

Technical Data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
